Aluminium Casement Windows
Thermal break casement systems with integrated blinds and ultra-narrow sightlines.

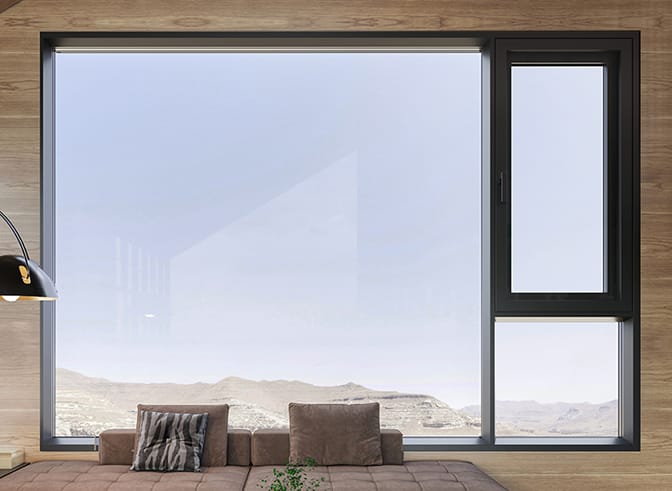

Pro110 Thermal Break Casement window
- Profile wall thickness
- 2.0 mm
- Frame width
- 110 mm
- Thermal break
- Yes, polyamide thermal break
- Hardware system
- EMD system with CMECH multi-point locking
System Specification
| Opening options | Outward / Inward Swing / Inward Tilt & Swing |
| Shading system | Sealed glass-cavity blinds or windproof roller blinds |
| Glass | 5 + 20A + 5 mm tempered insulated standard Laminated, Low-E and argon to order |
| Max sash size | up to 1.2 m × 2.4 m per sash |
| Finish | Powder coating, anodising, wood grain; any RAL colour |
| Electric operation | Motorised opening and motorised blinds available on request |
Typical Performance
| Wind load resistance | 2,000 Pa, EN 12210 Class C5 |
| Water tightness | Class 7A, 300 Pa, EN 12208 |
| Air permeability | Class 4, EN 12207 |
| Thermal transmittance | Uw 2.6 W/m²K with 5+20A+5 clear 1.8 W/m²K with Low-E argon |
| Applicable projects | Villas and apartments where glare and privacy matter, and hotels needing blinds without cleaning |

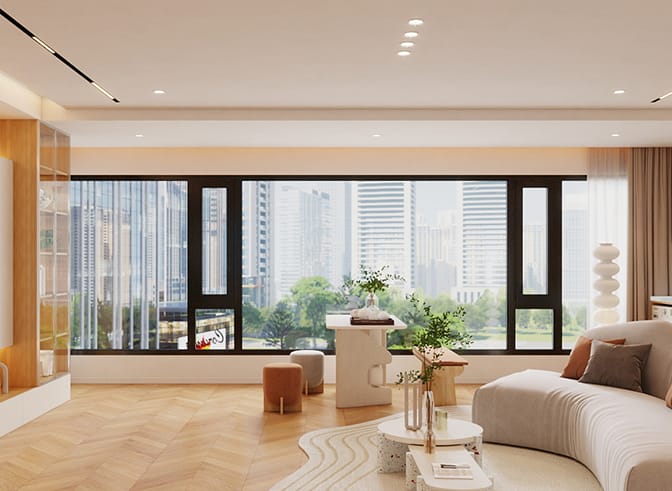

NZ-110/120 Ultra-narrow Casement window
- Profile wall thickness
- 2.0 mm
- Frame width
- 78/88 mm
- Thermal break
- Yes, polyamide thermal break
- Hardware system
- EMD system with HOPO multi-point locking
System Specification
| Opening options | Outward / Inward Swing / Inward Tilt & Swing |
| Shading system | Sealed glass-cavity blinds or windproof roller blinds |
| Glass | 5 + 20A + 5 mm | Fixed 5+12A+5+12A+5 mm tempered insulated standard, Laminated, Low-E and argon to order |
| Max sash size | up to 1.0 m × 2.2 m per sash |
| Finish | Powder coating, anodising, wood grain; any RAL colour |
| Electric operation | Motorised opening and motorised blinds available on request |
Typical Performance
| Wind load resistance | 2,000 Pa, EN 12210 Class C5 |
| Water tightness | Class 7A, 300 Pa, EN 12208 |
| Air permeability | Class 4, EN 12207 |
| Thermal transmittance | Uw 2.4 W/m²K with 5+12A+5+12A+5 fixed lights |
| PRO110 | NZ-110/120 | |
|---|---|---|
| Best for | Built-in shading and privacy | Slimmest possible sightlines |
| Frame width | 110 mm | 78 / 88 mm |
| Integrated blinds | Yes, sealed in the glass cavity | Yes, sealed in the glass cavity |
| Glass | Double glazed | Double glazed sash, triple glazed fixed lights |
| Typical use | Villas, apartments, hotels | Architect-led villas, galleries, showrooms |
Featured Projects
Casement windows projects we have delivered

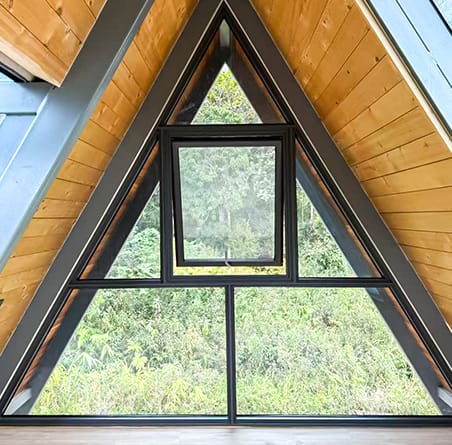

Kundasang Resort, Sabah
Casement windows in a typhoon zone

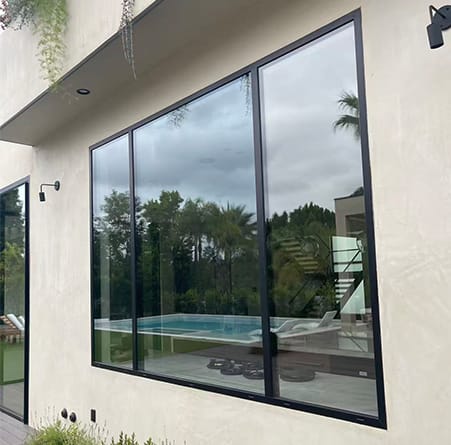

American Villa, California
Awning windows and roof skylights at 1,400 m²

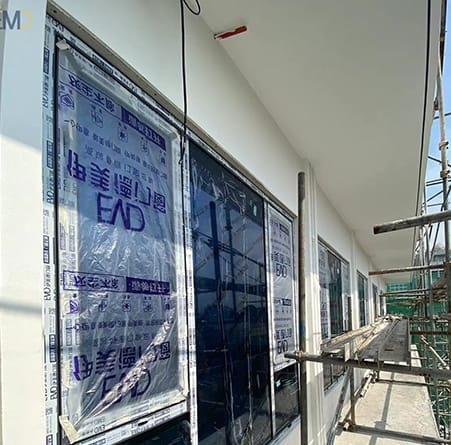

Philippines Villa, Zambales
Casement windows in a typhoon zone
Certified to CE, CSA, NFRC, AAMA and CSI.
Tested by Intertek.
DoP no.
No.
Report no.
CPD ID
Certification no.
Certificate no.
Our Process
From Concept to Completion
- 1
Requirement
AnalysisUnderstanding your project needs and technical requirements
- 2
Design &
QuotationDrawings and pricing within 24 hours of receiving your sizes
- 3
Sample
ConfirmationReviewing details before mass production
- 4
Production
& QCFour inspection points, quality photos sent during production
- 5
Packaging
& ShippingCrated and loaded at the factory
- 6
Installation
& SupportDrawings, guides and technical support through to handover
Drawings and pricing within 24 hours. Custom sizes are standard, not an extra.
