Aluminium Bi-Fold Doors

Thermal break and non-thermal bi-fold systems, up to 8 panels to one opening.

65 Thermal Break HEAVY TYPE Folding door

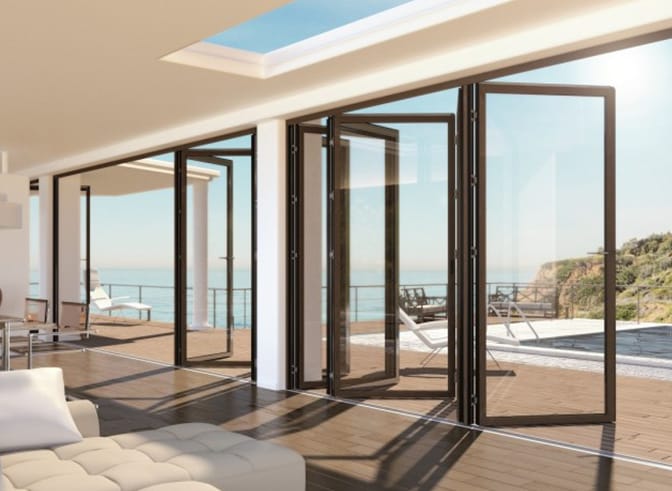

EMD 65 thermal break bi-fold doors opened onto a sea-view terrace
Profile wall thickness
5.0 mm
Frame width
65 mm
Thermal break
Yes, polyamide thermal break
Hardware system
EMD system with KERSSENBERG hinges and rollers

System Specification

Folding configuration2+0, 3+0, 4+0, 3+1, 4+2, 5+1 and other splits;
stacking left, right or both
Max panels per setup to 8 panels
Max panel sizeup to 900 × 2,600 mm per panel
Max overall widthup to 7.2 m with 8 panels
Opening optionsFolding, inward or outward
Glass optionsLow-E, coated, tinted or switchable smart glass
Glass configuration5 + 20A + 5 mm tempered insulated standard
Laminated and argon to order
ThresholdStandard, low-profile or flush (level access)
FinishPowder coating, anodising, wood grain; any RAL colour
Electric operationMotorised operation available on request

Typical Performance

Wind load resistance1,600 Pa, EN 12210 Class C4
Water tightnessClass 6A, 250 Pa, EN 12208
Air permeabilityClass 3, EN 12207
Thermal transmittanceUd 2.8 W/m²K with 5+20A+5 clear

80KSBG Non-Thermal Break Heavy-Duty Folding Door

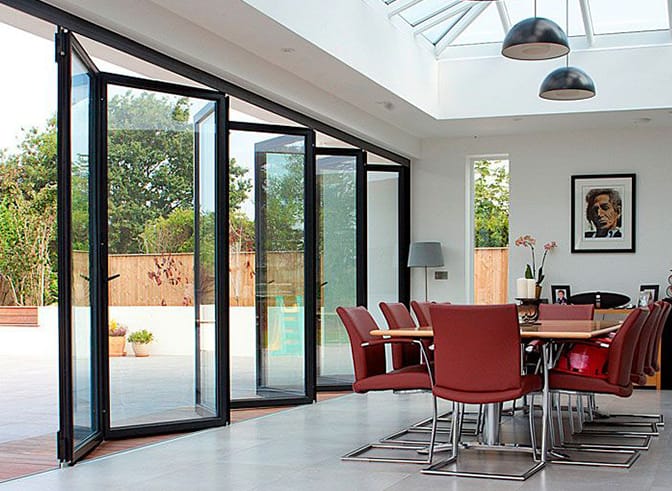

80KSBG heavy-duty bi-fold doors folded open beside a dining room
Profile wall thickness
2.0 mm
Frame width
80 mm
Thermal break
No thermal break
Hardware system
EMD system with KERSSENBERG hinges and rollers

System Specification

Folding configuration2+0, 3+0, 4+0, 3+1, 4+2, 5+1 and other splits;
stacking left, right or both
Max panels per setup to 6 panels
Max panel sizeup to 900 × 4,800 mm per panel
Max overall widthup to 5.4 m with 6 panels
Glass optionsLow-E, coated, tinted or switchable smart glass
Glass configuration5 + 27A + 5 mm tempered insulated standard
Laminated to order
ThresholdStandard, low-profile or flush (level access)
FinishPowder coating, anodising, wood grain; any RAL colour
Electric operationMotorised operation available on request

Typical Performance

Wind load resistance1,800 Pa, EN 12210 Class C4
Water tightnessClass 6A, 250 Pa, EN 12208
Air permeabilityClass 3, EN 12207
Thermal transmittanceInternal partitions, restaurant and bar frontages, and tropical or semi-outdoor openings where thermal insulation is not required
EMD 65EMD 80
Best forHeated or cooled spacesOpenings that do not need insulation
Thermal breakYesNo
Frame depth65mm80mm
Max panel size900 × 2,600 mm900 × 4,800 mm
Max panels per setUp to 8Up to 6
Typical useRestaurant and hotel frontages, verandasInternal partitions, tropical and semi-outdoor openings
Which one do you need? Not sure? Send us your opening sizes and we will tell you which system fits.

Applications

What bi-fold doors do that sliding doors cannot

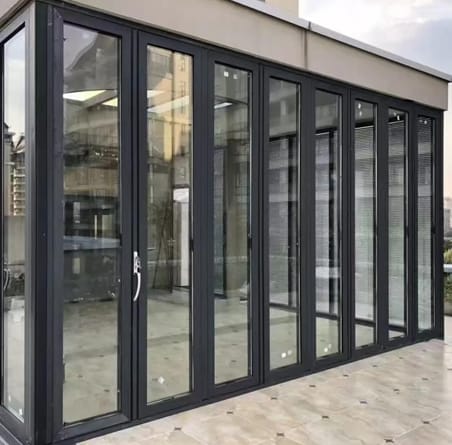

Bi-fold doors meeting at a building corner

Corner enclosures

Two runs meet at the corner. Closed it is a glazed room; folded, both walls open.

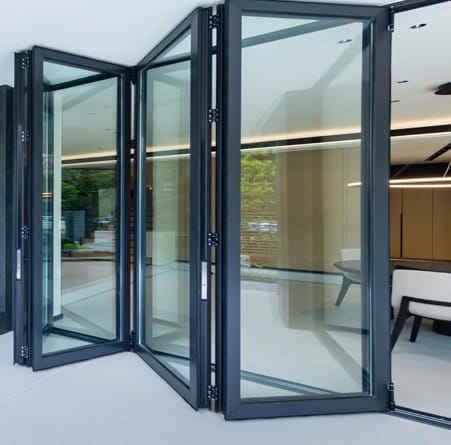

Bi-fold doors folded open between a living room and a terrace

Terrace openings

Panels fold and stack as you push, so the living space and the terrace become one room.

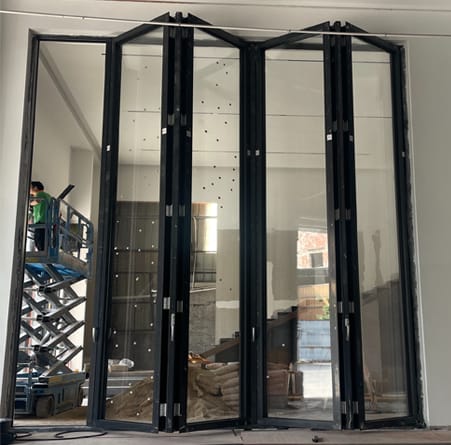

Full-width bi-fold door panels stacked to one side during installation

Full-width openings

Panels stack to one side, clearing the whole opening. A sliding door always leaves half the opening closed.

See the specifications

Certified to CE, CSA, NFRC, AAMA and CSI.
Tested by Intertek.
