Botolan, Zambales, Philippines
Typhoon-zone aluminum windows and doors,
engineered for high wind load, driving rain and coastal salt air.
- Location
- Botolan, Zambales, Philippines
- Building type
- Private villa, three storeys
- Scope
- Casement windows, sliding doors
and fixed glazing throughout - Systems used
- PRO110 thermal break casement
TY120 thermal break sliding - Glazing
- 5 + 20A + 5 mm insulated glass
Local Climate
Tropical marine climate, frequent severe typhoons, heavy seasonal rainfall, high‑salt‑spray coastal zones, high year‑round temperature and humidity.
Key Challenges
High wind‑pressure resistance, excellent water tightness against heavy rain, anti‑corrosion for salt‑fog environment, prevent water leakage under typhoon conditions.
EMD Solution
Wind load resistance to 2,000 Pa, EN 12210 Class C5
Water tightness Class 7A to EN 12208, no leakage under 300 Pa driving rain
Marine-grade powder coating to AAMA 2603 for coastal salt air

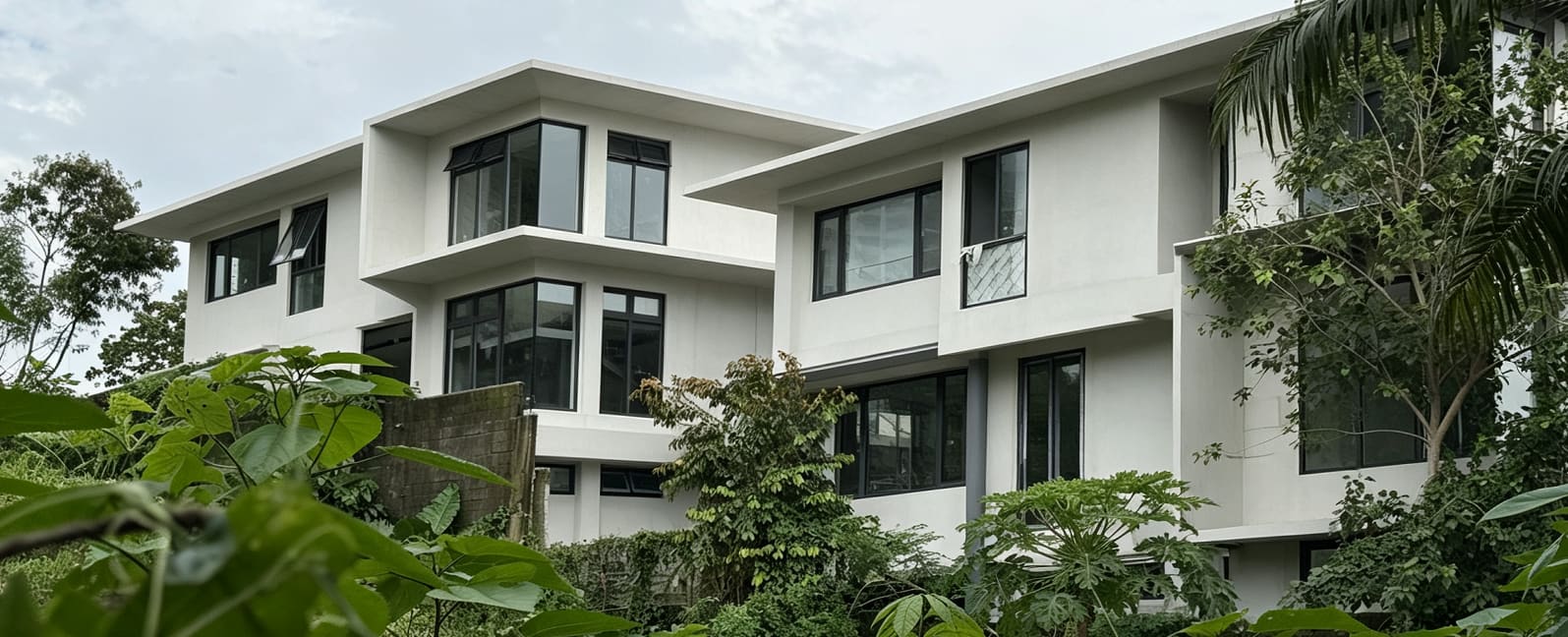

Final Result

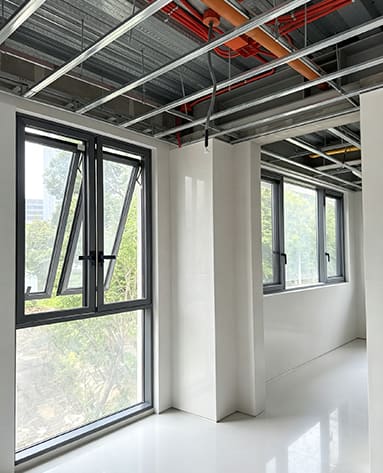

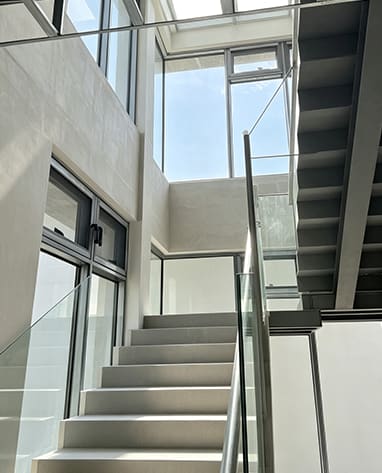

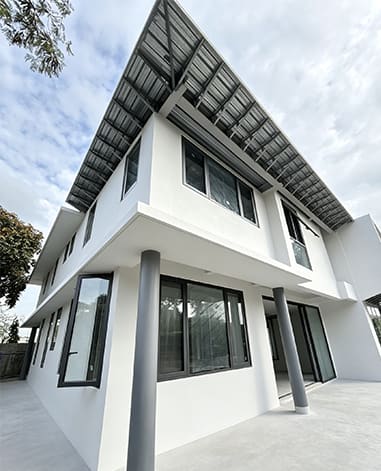

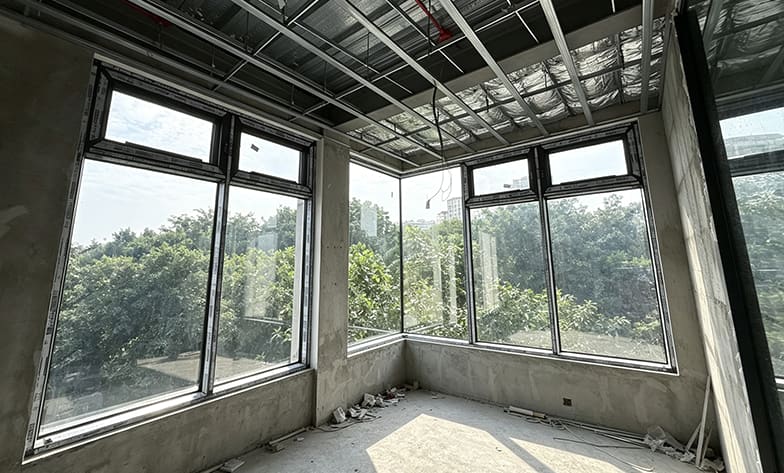

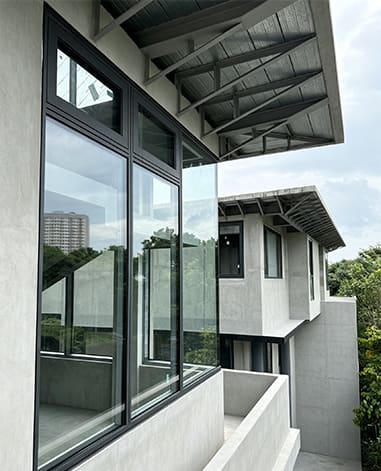

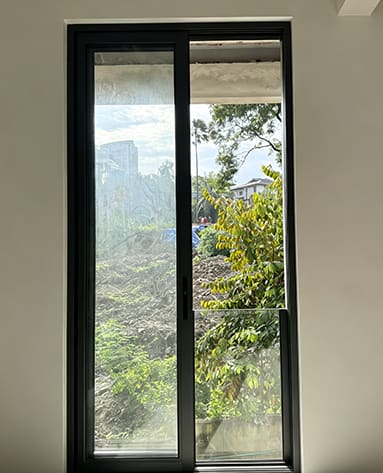

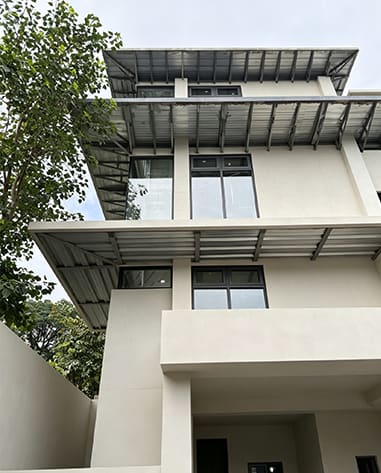

Casement windows, sliding doors and fixed glazing installed across all three floors, including corner glazing and full-height terrace doors.
Product Specifications
PRO110 Thermal Break
Casement Window
| Profile Wall Thickness | 2.0mm |
|---|---|
| Frame Width | 78/88mm |
| Opening Options | Outward / Inward Swing / Inward Tilt & Swing |
| Glass Configuration | Glass sash 5+20A+5mm | Fixed 5+12A+5+12A+5mm |
| Hardware System | CMECH Hardware |
Typical Performance
| Wind load resistance | 2,000 Pa, EN 12210 Class C5 |
|---|---|
| Water tightness | Class 7A, 300 Pa, EN 12208 |
| Air permeability | Uw 2.6 W/m²K with 5+20A+5 clear ｜ 1.8 W/m²K with Low-E argon |
| Max sash size | 1,200 × 2,400 mm |
| Finish | Powder coating to AAMA 2603 PVDF to AAMA 2605 for coastal exposure |
TY120 Thermal Break
Sliding Doors
| Profile Wall Thickness | 2.0mm |
|---|---|
| Frame Width | 120mm |
| Opening Options | Push-And-Pull |
| Glass Configuration | 5mm+20A+5mm Tempered Insulated Glass |
| Hardware System | EMD System |
Typical Performance
| Wind load resistance | 1,600 Pa, EN 12210 Class C4 |
|---|---|
| Water tightness | Class 6A, 250 Pa, EN 12208 |
| Air permeability | Class 3, EN 12207 |
| Max sash size | 1,500 × 2,700 mm, up to 150 kg per panel |
| Finish | Powder coating to AAMA 2603 PVDF to AAMA 2605 for coastal exposure |

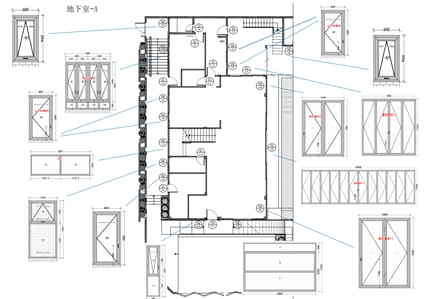

Drawings
Every opening measured on site and drawn to a numbered schedule. Drawings cover elevations, sections and installation details. Production starts only after the client signs off on the drawings.

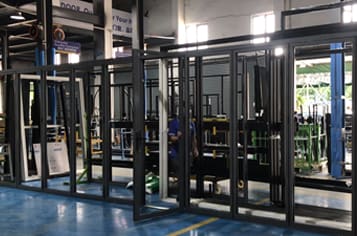

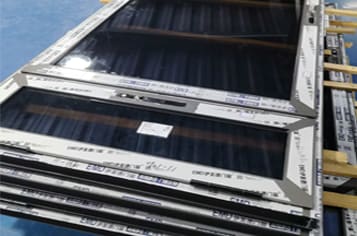

Production & QC

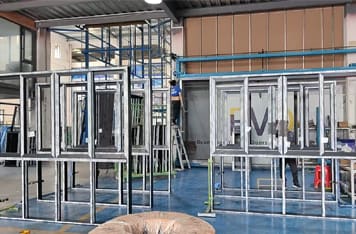

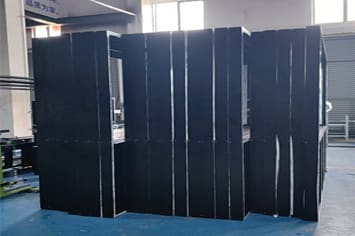

Every unit passes four inspection points before packing, and quality control photos are sent to the client during production.

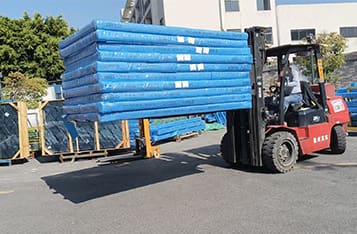

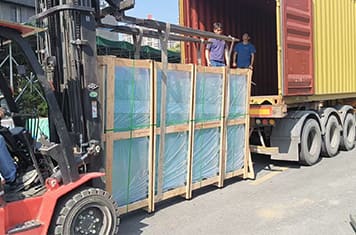

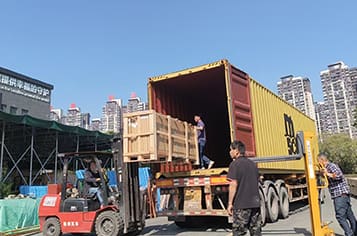

Packing & Shipping

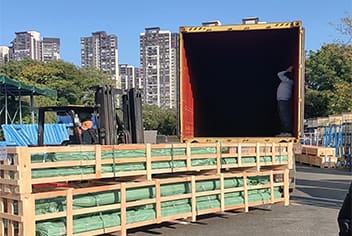

Units are crated on timber pallets with edge protection and film wrap, then loaded into containers at the factory.

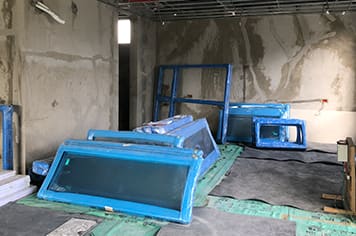

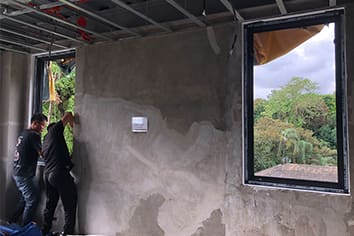

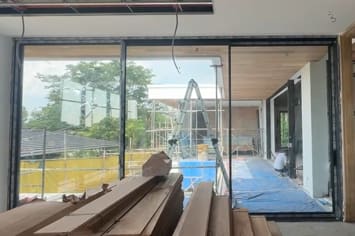

Installation

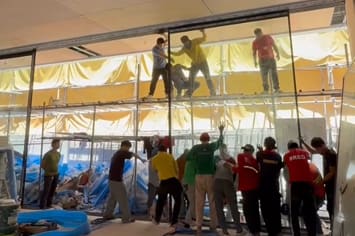

Units were delivered to each floor and set opening by opening with the client's site crew.
